¶ Major Components
An overview of the major components of the furnace is shown here. Further details are provided throughout other sections of the user manual.
¶
Side Cabinet
The side cabinet houses a variety of electrical and gas controls for the retort. For details, see Touchscreen Connectivity Issues.
¶ Touchscreen Interface
The furnace is controlled through a touchscreen interface. This allows the user to select a cycle and start it. The user may also update the software and download records of previous furnace cycles. For details, see Software Interface.
¶ Retort Door/ Sintering Chamber
Parts are sintered in a controlled atmosphere retort. For details, see Section Retort Overview.
¶ Power Switch
Used to power the furnace on or off.
¶ Middle Front Cover and Lower Front Door
The middle front cover and lower front door provide access to numerous internal components of the furnace. For details, see Cleaning and Maintenance.
¶ Locking Casters
The locking casters allow the furnace to be easily moved and locked into position once fully installed.
¶ Furnace Cooling Vents
The furnace cooling vents mounted on top of the furnace ensure effective ventilation of heat emitted by the retort and heating elements.

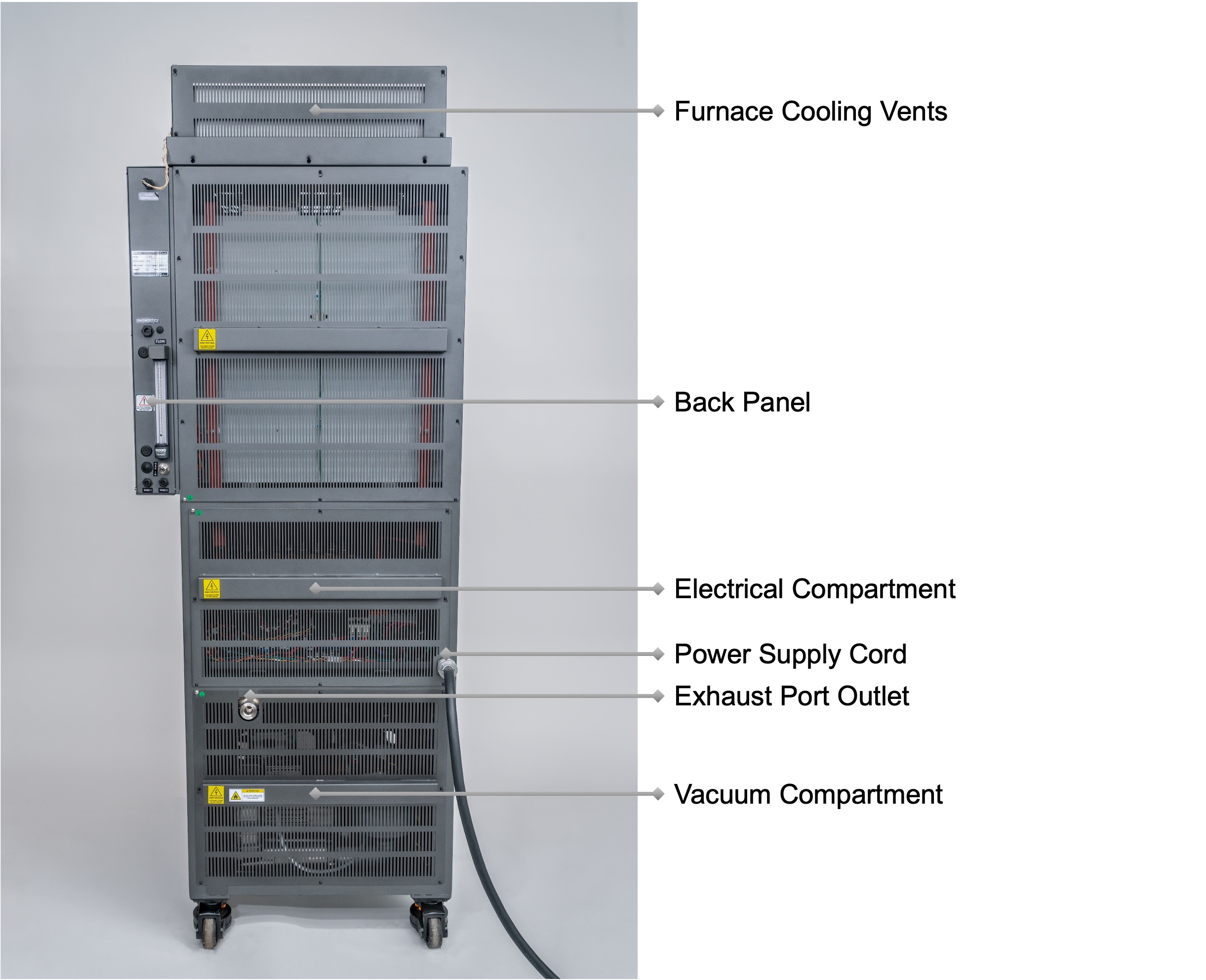

¶ Back Panel
The back panel, located on the rear of the side cabinet, has several connections as shown in the beginning of this section.
¶ Power Supply Cord
For details, see Installation Requirements.

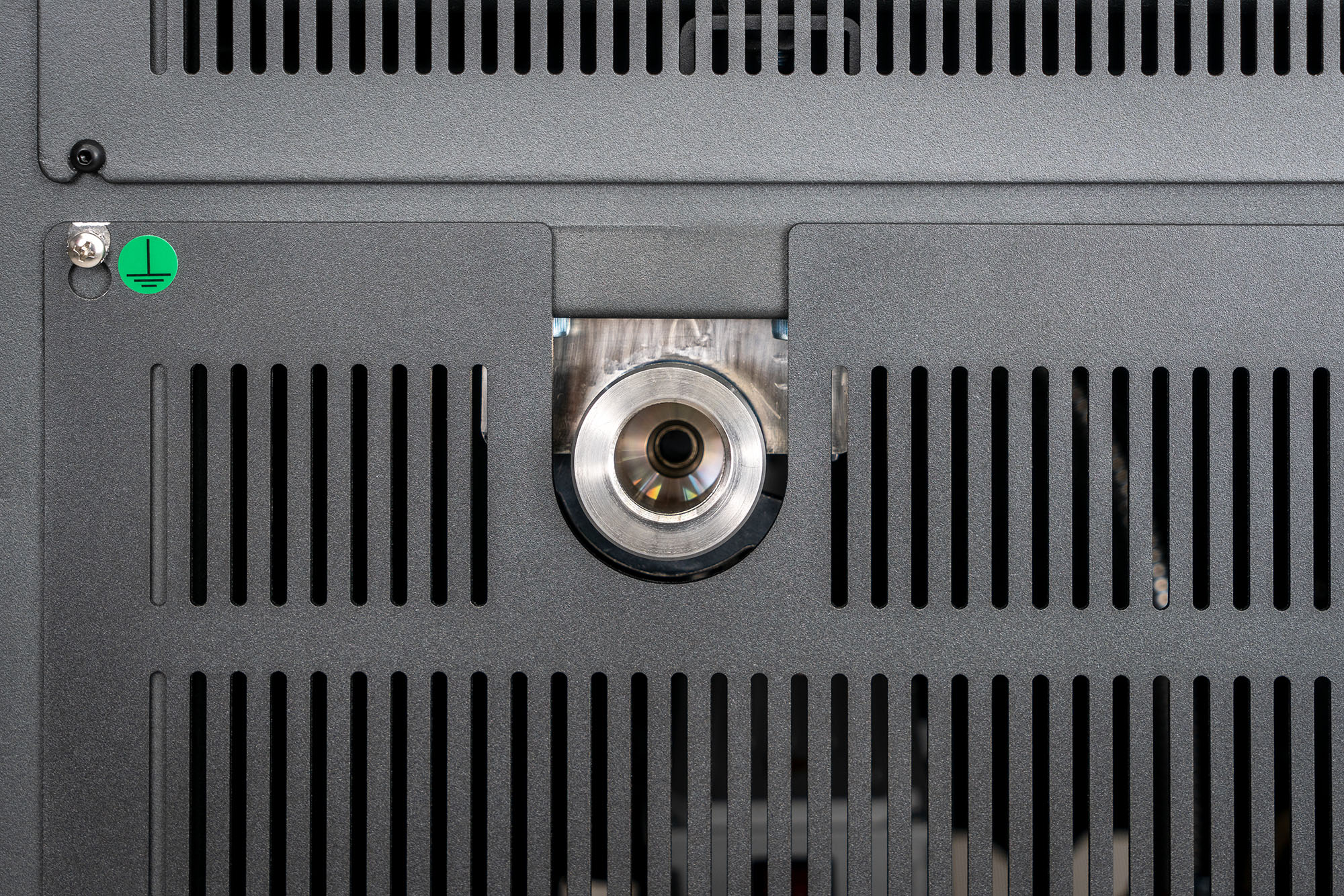

¶ Exhaust Outlet Port
The exhaust outlet port carries emissions from the furnace and must be vented properly. For details, see Installation Requirements.
¶ Vacuum Compartment
The vacuum compartment houses a variety of components required for pressure control and residue and exhaust management. For details, see Cleaning The Binder Trapping System/ Replacing The Filter.
